HYDRO G PRO 750W


6,500.00

More Powerful with a Compact Size

The Hydro G Pro series, an upgrade from the original Hydro G, took the best features of the Hydro G series and made them even better. Not only is the Hydro G Pro more compact, it also improves its performance with a more powerful output, which gives you even better performances.

Compliant with IEC/EN 62368

FSP Group features the latest in green power technology, and provides a full array of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of their power supplies to comply with the new IEC/EN 62368 standard for your gaming rigs.

80 Plus® Gold Certification

The Hydro G Pro series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and reduces electricity cost.

ECO Switch, Quieter and Longer Lasting Fan

When the Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.

The HYDRO G Pro series comes with a FDB fan and an intelligent 0dBA function to reduce noise, and offers a longer-lasting life.

Compatible with the Latest PC-technology

Corresponds to a variety of the latest CPU platforms. Complies with Intel ATX12V V2.52 power supply design guide to make sure the peak power in 12V supports the latest Intel / AMD platforms and delivers full power to your PC system.

Multiple-unit Connectors

The ATX 12V CPU power connector is able to support CPUs with a sufficient amount of wattage and compatible with the latest motherboards. The Hydro G Pro series features wattages from 650W to 1000W. It comes with dual power connectors (more than any regular PSUs) and provides stable peak output to your system.

Fully Modular Design for Quick and Easy Installation

Fully modular design simplifies the installation process and allows you to use only the cables that you need for a cleaner build.

Off-Wet Technology

The Hydro G Pro is covered with a conformal coating that guarantee a reliable performance in harsh environments. The PSU operates perfectly with 95% RH where others might struggle.

LLC Half Bridge Topology with DC-DC Module Design

The Hydro G Pro series features an extremely tight voltage regulation to make the output voltage regulation under +/- 1% at any load changes, and offers efficiency and voltage stability throughout.

10-Year Warranty

FSP is committed to manufacturing high-quality and reliable power supplies. The Hydro G Pro series is backed by our 10-year warranty for both parts and labor.

Performance

Efficiency

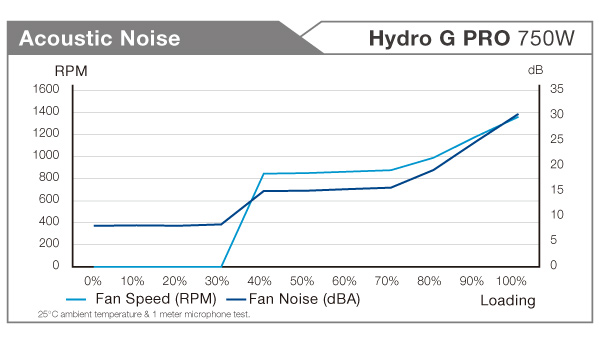

noise

AC/DC

AC Input 100-240Vac~  10-5A  50-60Hz
DC Output +3.3V +5V +12V -12V +5Vsb
Max Output Current 20A 20A 70.83A 0.3A 2.5A
Max Combined Power 120W 750W 3.6W 12.5W
Total Power 750W

Cables

atx cable 24 pin EPS 4 4 pin pcie 6+2 pin hd stat molex 2.5 floppy
ATX 20+4 4+4 PIN PCI-E 6+2 SATA Molex
(PERIPHERAL)
Floppy
Connectors 1 2 4 14 5 1

SPECIFICATIONS

Model HG2-750
Rated Output Power 750W
Form Factor ATX
80 PLUS Certification Gold
Input Voltage 100-240Vac
Input Current 10-5A
Input Frequency 50-60Hz
PFC Active PFC
Efficiency ≥90% at typical load
Fan Type FDB Fan, 135 mm
Dimensions(L x W x H) 150 x 150 x 86 mm
Operation Temp. 0-50℃
Protection OCP, OVP, OPP, SCP, OTP
